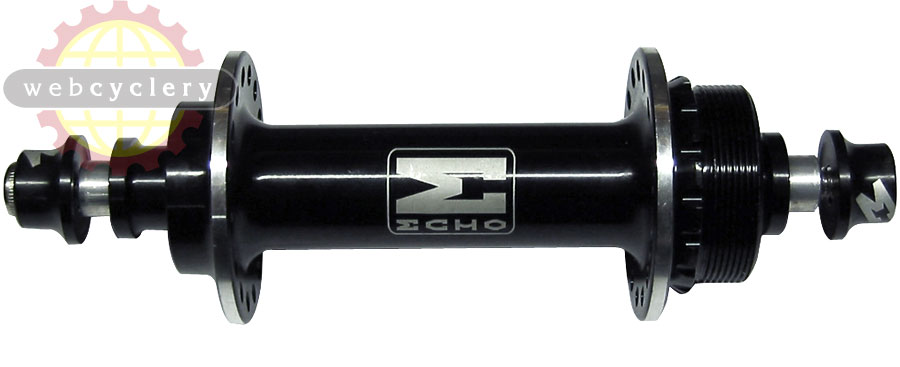

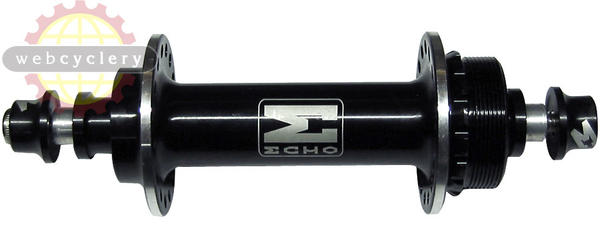

Echo TR Threaded Non-Disc 116mm Rear Hub

Echo TR Threaded Non-Disc 116mm Rear Hub

Product Rating
0.0 stars
 (0 Reviews)
Availability: In Stock

Product Details

Echo TR Threaded Non-Disc 116mm Rear Hub

The Echo TR non-disc rear hub is a fixed hub so you can run a front freewheel setup (or run a freewheel on the rear wheel). The hub is constructed from a 10mm CroMo steel axle and a 2014 Aluminum hub shell and runs on two sealed bearings. It features standard 1.37" x 24tpi threads to accomodate threaded cogs and comes in a clean, anodized black finish with laser-etched logos. Comes supplied with steel bolts and washers. Available in 32 hole drilling only. Compatible with mods and some stock bikes spaced at 116mm.

Please Note: This hub no longer comes supplied with snail cams and is not spaced to include them as Echo no longer uses snail cams on any of their frames.

Features and Information

  • Weight: 173g (including bolts and washers)
  • Flange Diameters: 40mm
  • Center to Flanges: 35mm
  • Spoke Drilling: 32h
  • Part Numbers close open

    Manufacturer's Part Number Store SKU
    ECH21786549L ECH21786549L
