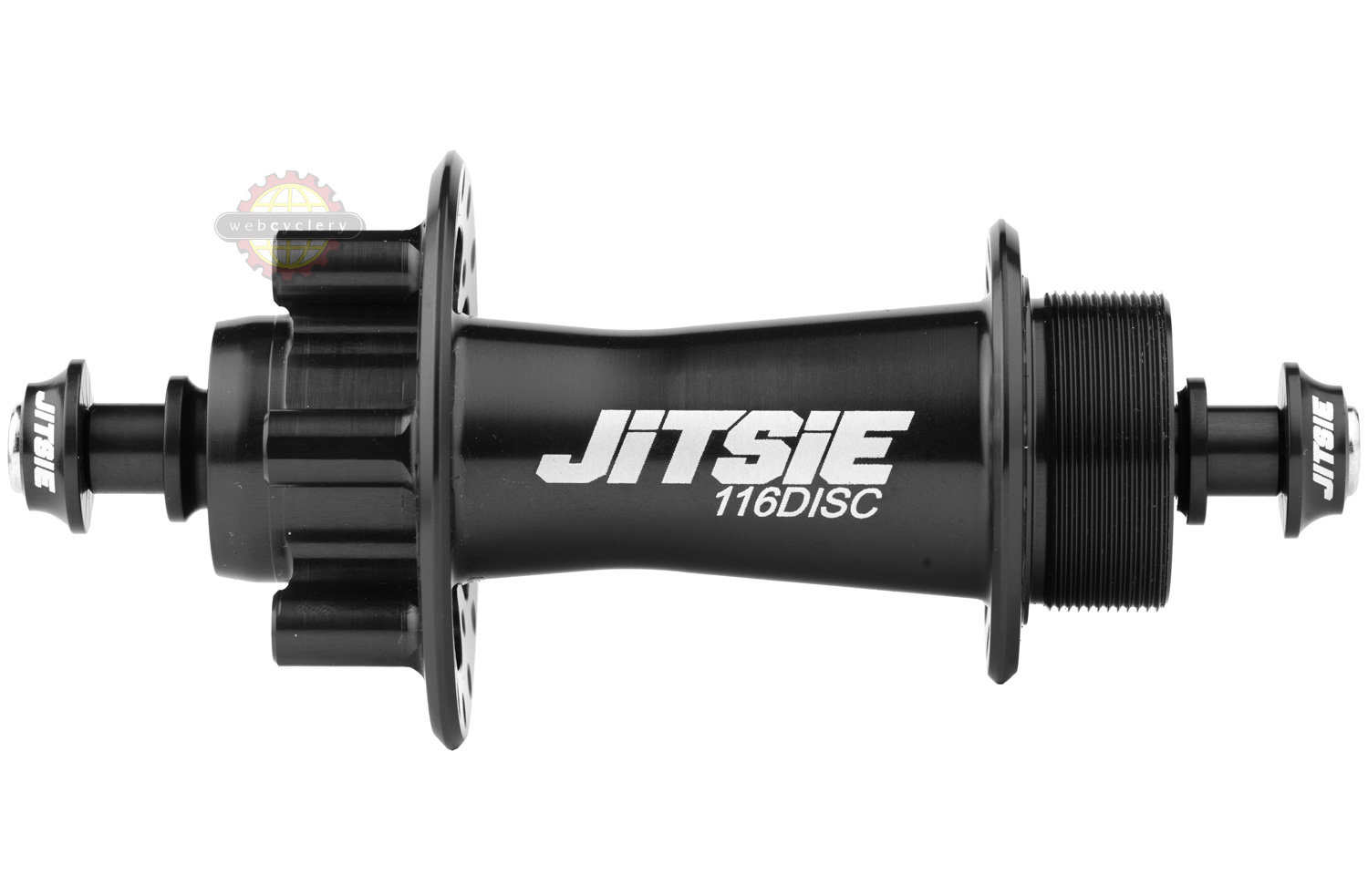

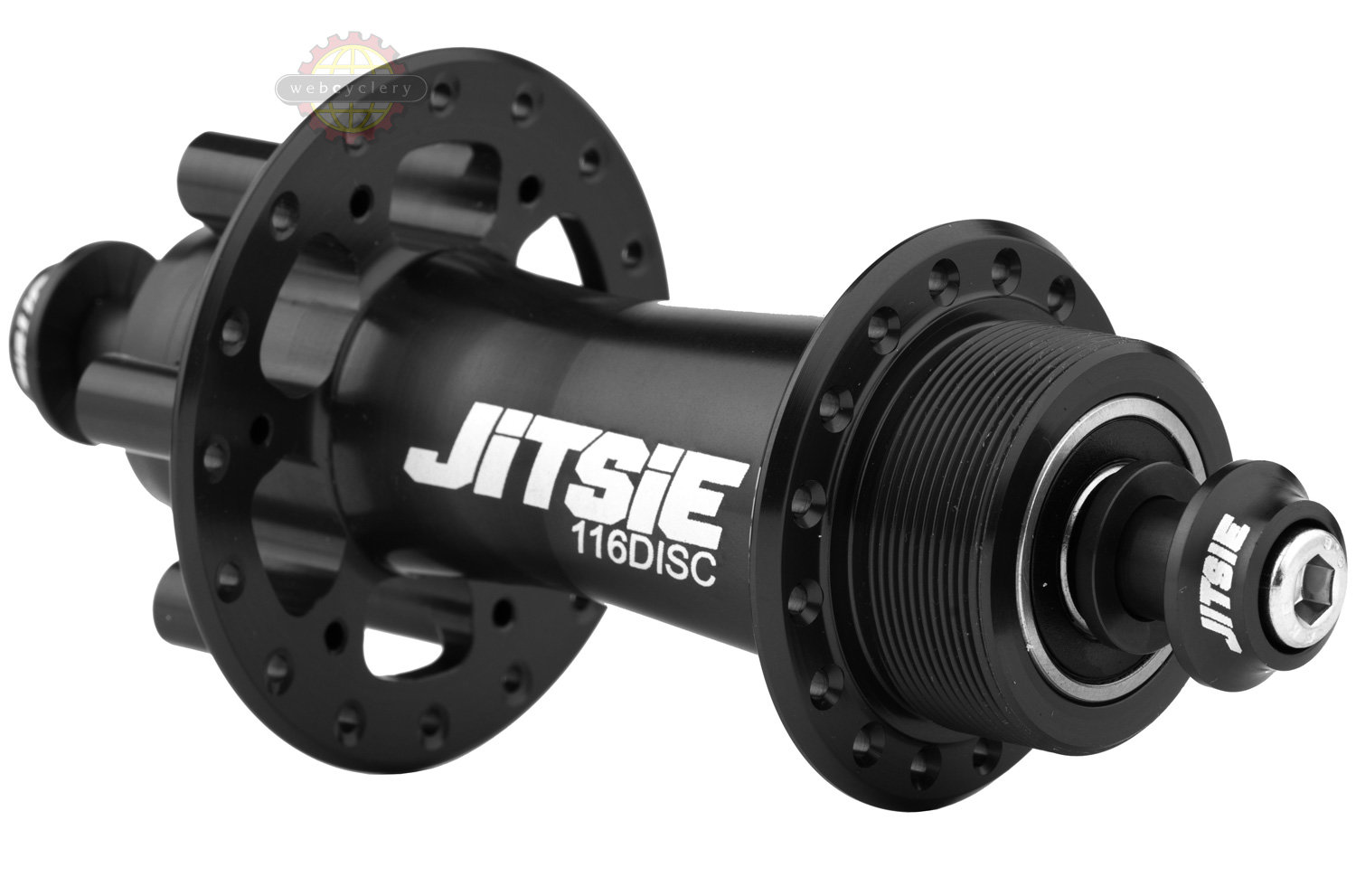

Jitsie Race Disc 116mm Rear Hub
  • Color: Black
  • Color: Black
  • Color: Black
  • Color: Black
  • Color: Red
  • Color: Red
  • Color: Red
  • Color: Red

Jitsie Race Disc 116mm Rear Hub

Product Rating

0.0 stars
 (0 Reviews)
$120.00
Availability:


Product Details

Jitsie Race Disc 116mm Rear Hub

Jitsie's superlight 116mm disc hub from their race range of components.

- Designed with input from multiple time World Champion Dani Comas.
- Manufactured in Belgium.
- 116mm spacing fits most 20" frames and some 24"/26" frames.
- Fully sealed cartridge bearings offer smooth and reliable running and protect against dirt and water.
- Uses a custom designed, CNC machined 7075 aluminum tapered shell to minimize weight.
- Features a hollow aluminum axle, further reducing weight.
- Minimalist disc mount saves weight by removing material while improving strength by connecting directly to the flange.
- Precision threaded (1.37" x 24 tpi) section ready to fit a freewheel or fixed sprocket.
- Black or Red anodized finish with Jitsie laser etched logos.
- Supplied with steel bolts and Jitsie's superlight low profile aluminum washers.
- Spaced for use with snail cams (110mm + 3mm axle spacing for each snail cam).
- 32h spoke drilling only.

Features and Information

  • Weight: 156g (including supplied bolts and washers)
  • Drive Side Flange Diameter: 42mm
  • Drive Side Center to Flange: 34mm
  • Non-Drive Side Flange Diameter: 56mm
  • Non-Drive Side Center to Flange: 25mm

  • Part Numbers close open

    Option Manufacturer's Part Number Store SKU
    Black BI15-RRHUBD116N JIT31555283K
    Red BI15-RRHUBD116R JIT29418095D
