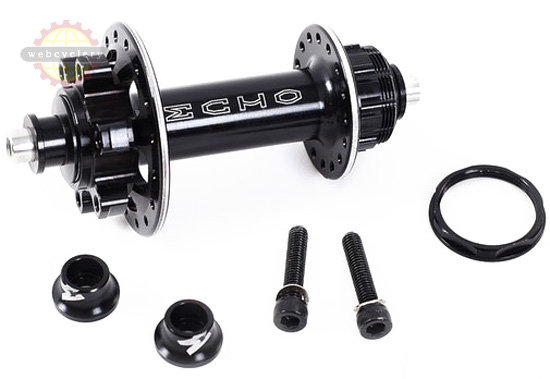

Echo TR Splined Disc 116mm Rear Hub

Echo TR Splined Disc 116mm Rear Hub

Product Rating

0.0 stars
 (0 Reviews)
$76.00
Availability: In Stock


Product Details

Echo TR Splined Disc 116mm Rear Hub

- 10mm CroMo steel axle for maximum durability.
- High quality 6061 T6 aluminum hub shell.
- Sealed bearings provide reliable and smooth operation.
- Features a splined interface for easy installation and removal of cogs.
- Cog is held in place by a threaded lockring supplied with hub.
- Compatible with Echo V2 splined cogs only.
- New axle spacers feature integrated bearing covers to help keep the bearings free of dirt and grit.
- International Standard 6-bolt rotor mount.
- Anodized black finish with laser-etched logos.
- Supplied with steel bolts and washers.
- Spaced for use without snail cams.
- Available in 32 hole drilling only.

Features and Information

  • Weight: 191g (including bolts, washers, and lockring)
  • Disc Side Flange Diameter: 56mm
  • Disc Side Center to Flange: 28mm
  • Non Disc Side Flange Diameter: 40mm
  • Non Disc Side Center to Flange: 33mm
  • Spoke Drilling: 32h

  • Part Numbers close open

    Manufacturer's Part Number Store SKU
    ECH34870760K ECH34870760K
